Battery Connection Pure Nickel Strip
Pure Nickel Ni200/ Ni 201 Strip for Battery Connection

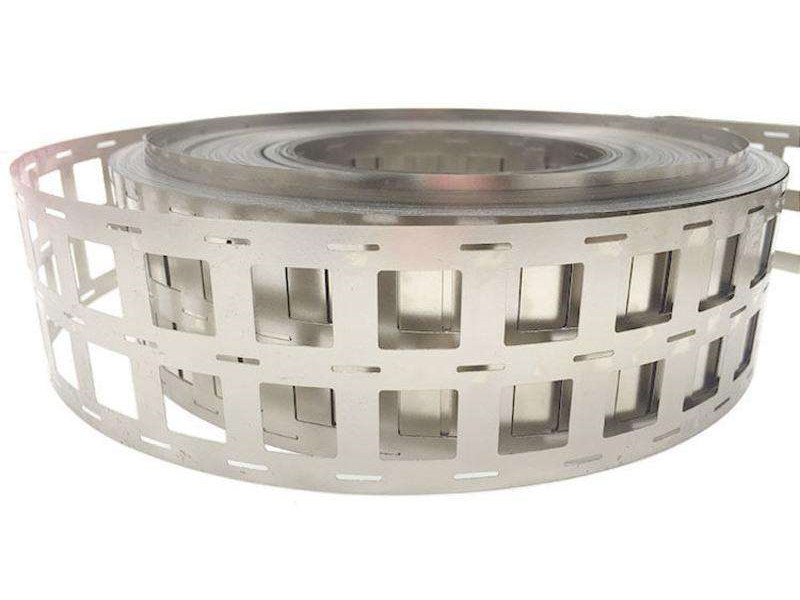

2P pure nickel strip, which the width 49.5mm is standard size for 18650 2p strip. And other size of nickel strip could be customized. Pure nickel has excellent mechanical properties, high corrosion resistance in different environments, and magnetic feature, high heat transfer, high conductivity, low gas volume and low vapor pressure. Pure nickel also has good spot welding properties and high tensile strength.
Pure Nickel Strip Application:
1. Low resistance, make the battery pack more powerful, save energy.
2. Pure Nickel to make it easy welding, stable connection
3. Good tensile and easy operate assembly.
4. Shaped design, save too much work for customer to assembly battery pack.
5. High Electrical Conductivity
6. Anti-corrosive and low resistance

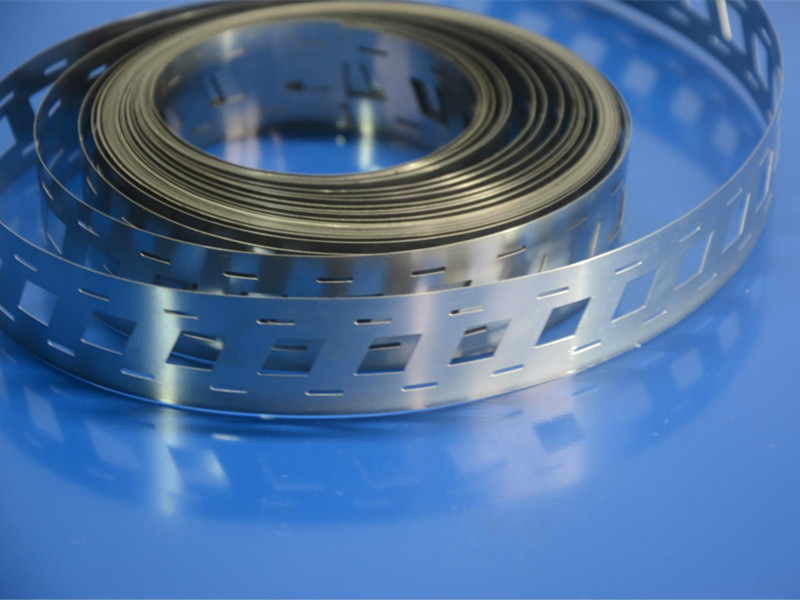

18650 Battery Nickel Strip
H shape nickel strip: 1P, 2P 3P, 4P, 5P, 6P, 7P, 8P, 9P
|
Model |
Thickness |
Distance of two welding centers: 18.5mm |
Distance of two welding centers: 19mm |
Distance of two welding centers: 19.5mm |
Distance of two welding centers: 20/20.25mm |
|
Width(mm) |
Width(mm) |
Width(mm) |
Width(mm) |
||
|
1P |
0.15/0.2mm |
8 |
8 |
8 |
8 |
|
2P |
25.5/27 |
26.5/27 |
26.5/27 |
27 |
|
|
3P |
44 |
46 |
46 |
47 |
|
|
4P |
62.5 |
65.5 |
65.5 |
67 |
|
|
5P |
81 |
85 |
85 |
87 |
|
|
6P |
99.5 |
104.5 |
104.5 |
107 |
|
|
7P |
118 |
124 |
124 |
127 |
|
|
8P |
136.5 |
143.5 |
143.5 |
147 |
|
|
9P |
155 |
163 |
163 |
167 |
H shape nickel strip
|
Model |
Thickness |
Width |
Distance of two welding centers |
|
1P |
0.15/0.2mm |
8 |
18.5mm |
|
2P |
23 |
||
|
3P |
39 |
||
|
4P |
55 |
||
|
5P |
71 |
26650 Battery Nickel Strip
|
Model |
Thickness |
Distance of two welding centers: 26.2mm |
Distance of two welding centers: 27.6mm |
|
Width(mm) |
Width(mm) |
||
|
1P |
0.15/0.2mm |
8 |
10 |
|
2P |
33.3 |
34.8 |
|
|
3P |
59.45 |
62.6 |
|
|
4P |
85.6 |
90.4 |
|
|
5P |
111.75 |
118.2 |
|
|
6P |
137.9 |
146 |
|
|
7P |
164.05 |
173.8 |
|
|
8P |
190.2 |
201.6 |
|
|
9P |
216.35 |
229.4 |
32650 Battery Nickel Strip
|
Model |
Thickness |
Width(mm) |
Distance of two welding centers |
|
1P |
0.15/0.2mm |
14.7 |
32.5mm(used for battery pack without battery spacer) |
|
2P |
47.5 |
||
|
3P |
82 |
||
|
4P |
116.5 |
||
|
5P |
151 |
