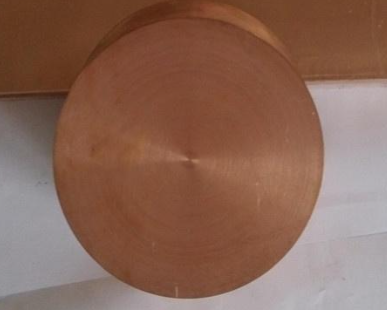

Tungsten-copper (W-Cu) alloys are widely utilized in fields such as electronics, defense, and aerospace due to their exceptional hardness and excellent electrical and thermal conductivity. However, high hardness often implies processing difficulties; how, then, can one strike a balance between these two major characteristics? Furthermore, how do different fabrication processes—such as powder metallurgy, infiltration, and 3D printing—influence the machinability and mechanical properties of tungsten-copper alloys?
I. The Core Dilemma: Does High Hardness Inevitably Mean Difficult Machining?
The properties of tungsten-copper alloys are influenced by the interplay of both tungsten content and fabrication method; typically, hardness and machinability exhibit an inverse relationship:
| Property Indicator | High-Hardness W-Cu Alloys | Easy-to-Machine W-Cu Alloys |
| Typical Composition | W80Cu20, W90Cu10 | W50Cu50, W40Cu60 |
| Hardness (HV) | 250–350 | 150–220 |
| Machining Difficulty | High (Prone to tool wear) | Relatively Low (Machinability approaches that of pure copper) |
| Typical Fabrication Process | Infiltration, High-temperature Sintering | Powder Metallurgy, Hot Pressing |
Conclusion:
- High Tungsten Content (≥ 70% W) → High hardness, but difficult to turn or drill; requires specialized cutting tools (e.g., diamond-coated tools).
- High Copper Content (≥ 50% Cu) → Machinability approaches that of pure copper, but strength is lower; suitable for precision components.
II. Comparison of Four Preparation Processes: Hardness and Machinability
1. Traditional Powder Metallurgy (PM)
- Process: Mixing of tungsten powder + copper powder → Compaction → Sintering
- Hardness: Moderate (HV 180–280)
- Machinability: Relatively good; suitable for turning and milling (however, the presence of porosity affects surface finish)
- Applicable Materials: W60Cu40, W70Cu30
- Typical Applications: Electrodes, electrical contacts
2. Infiltration Method
- Process: Pre-sintering of tungsten skeleton → Infiltration with molten copper
- Hardness: Extremely high (HV 300+, approaching that of pure tungsten)
- Machinability: Extremely poor; typically requires wire cutting or EDM (Electrical Discharge Machining)
- Applicable Materials: W80Cu20, W90Cu10
- Typical Applications: Missile counterweights, radiation shielding components
3. Hot Isostatic Pressing (HIP)
- Process: Densification under high temperature and high pressure
- Hardness: High (HV 250–320)
- Machinability: Superior to the infiltration method, but still requires carbide cutting tools
- Applicable Materials: High-density W-Cu gradient materials
- Typical Applications: High-temperature-resistant aerospace components
4. 3D Printing (Selective Laser Melting, SLM)
- Process: Laser-induced melting and forming of tungsten-copper powder
- Hardness: Dependent on composition (approx. HV 200–250 for W70Cu30)
- Machinability: Near-net shape forming reduces the need for post-processing, though surface polishing is required
- Applicable Materials: Complex structural components (e.g., heat sinks, custom-shaped electrodes)
III. Machining Challenges and Solutions
Problem 1: Rapid tool wear when machining high-tungsten alloys (e.g., W80Cu20)
- Solutions:
- Use diamond or PCBN (Polycrystalline Cubic Boron Nitride) cutting tools
- Employ low cutting speeds combined with a high coolant flow rate
- Prioritize Electrical Discharge Machining (EDM)
Issue 2: Porosity in powder metallurgy parts compromises surface precision.
- Solution:
- Employ Hot Isostatic Pressing (HIP) post-processing to enhance density.
- Utilize low feed rates combined with high spindle speeds during finish machining.
Issue 3: Residual stress in 3D-printed tungsten-copper parts leads to deformation.
- Solution:
- Perform stress-relief annealing (600–800°C) after printing.
- Optimize laser scanning strategies to minimize thermal stress.
IV. Material Selection Recommendations: Matching Processes to Application Scenarios
| Application Requirements | Recommended Process | Representative Grade | Rationale |
| High-Hardness, Ablation-Resistant Components | Infiltration Method | W85Cu15 | Density >98%; hardness approaches that of pure tungsten. |
| Precision Electronic Contacts | Powder Metallurgy + HIP | W60Cu40 | Excellent electrical conductivity and machinability. |
| Complex-Shaped Heat Sinks | 3D Printing (SLM) | W50Cu50 | Tool-free manufacturing; rapid prototyping capability. |
| Low-Cost Mass Production | Traditional Powder Metallurgy | W70Cu30 | High cost-effectiveness; suitable for standardized parts. |
V. Future Trends: How to Further Optimize Hardness and Machinability?
1. Nanostructured Tungsten-Copper: Achieved through the sintering of nanopowders; enhances toughness while maintaining high hardness.
2. Graded Material Design: Utilizing varying W/Cu ratios in different sections of a component (e.g., high tungsten content in the surface layer, high copper content in the core).
3. Ultra-Precision Machining Technologies: Laser-Assisted Machining (LAM) to reduce the difficulty associated with machining high-tungsten alloys.
Summary
- Need high hardness? Choose high-tungsten alloys (e.g., W80Cu20) produced via the infiltration method; however, machining costs are high.
- Need ease of machining? Choose high-copper alloys (e.g., W50Cu50) produced via powder metallurgy; however, mechanical strength is lower.
- Seeking a compromise? Consider W60Cu40 processed via HIP or 3D printing to achieve a balance between performance and cost.
Post time: Apr-02-2026
