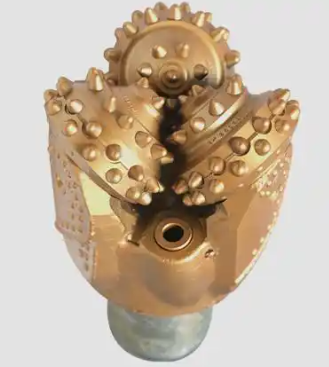

The roller cone drill bit is a drilling tool commonly used in oil and gas operations. Comprising a main body and multiple roller cones, it is characterized by its simple structure and high operational efficiency, making it widely applicable across various drilling operations. During operation, the cutting teeth of the roller cone bit make alternating contact with the borehole bottom; this process requires low rock-breaking torque. Furthermore, the small contact area between the cutting teeth and the borehole bottom generates high specific pressure, facilitating easy penetration into the geological formation. Additionally, the substantial total length of the cutting edges helps to minimize wear to a significant extent.
Carbide button bits constitute one of the critical components of a roller cone drill bit. Positioned along the cutting edges of the bit, they are responsible for cutting through rock and fracturing the geological formation. Carbide button bits are an alloy material produced via powder metallurgy; they are formulated using a base of powder from one or more refractory metal carbides (such as tungsten carbide, titanium carbide, tantalum carbide, or niobium carbide), bonded together by metal powders such as cobalt or nickel. This composition endows them with exceptional thermodynamic and chemical properties.
During drilling operations, carbide button bits are subjected to immense impact forces and friction. Consequently, they must possess high hardness, superior impact resistance, and excellent wear resistance to ensure a prolonged service life. Simultaneously, these carbide button bits require a certain degree of toughness to withstand the intense impact of the rock and mitigate the risk of fracture. These stringent design and material requirements establish carbide button bits as high-performance, critical components capable of facilitating stable drilling operations even under complex geological conditions.
The continuous innovation and improvement of carbide button bits within drilling technology hold significant importance for enhancing drilling efficiency and reducing operational costs. Continuously optimized carbide bits are better equipped to adapt to diverse geological conditions and rock formation characteristics, thereby boosting drilling speed and penetration rates while minimizing instances of bit sticking and drilling accidents. As technology continues to advance, the design and manufacturing of carbide button bits will continue to evolve toward achieving even higher performance standards and extended service lifetimes.
Products related to this article: CEMENTED TUNGSTEN CARBIDE BUTTON BITS
Author: Ms. Cherry Zhao, over 20 years of experience in Refractory metals industry.
