I. Introduction

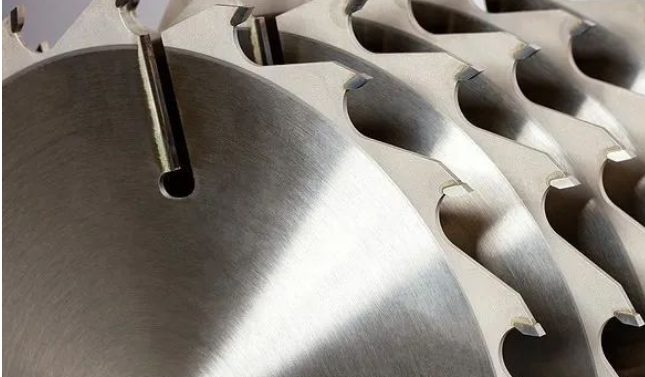

In the brilliant constellation of advanced materials science, tungsten carbide-cobalt (WC-Co) cemented carbide shines brightly—whether forming the razor-sharp edges of cutting tools, the robust structures of molds, or the durable bodies of wear-resistant components—thanks to its unparalleled hardness, exceptional wear resistance, and outstanding corrosion resistance.
Metallographic analysis serves as the key to unlocking the mysteries of the material’s microstructure, playing a pivotal role in the performance evaluation and optimization of WC-Co cemented carbides.
This article invites beginners to delve into the metallographic world of WC-Co cemented carbides, detailing the precise steps of grinding and polishing as well as essential precautions, empowering every reader to become an explorer in this field.
II. Overview of Tungsten Carbide-Cobalt Cemented Carbides
2.1 The Secrets of Material Composition
As the name implies, WC-Co cemented carbide is composed of an interwoven structure of incredibly hard tungsten carbide (WC) particles and a ductile cobalt (Co) binder. The WC particles serve as the “hard core” of the alloy, providing unique hardness and wear resistance, while the Co binder—valued for its toughness and machinability—firmly bonds the WC particles together, creating a series of indestructible “micro-fortresses.” This unique combination is processed via powder metallurgy—involving high-temperature consolidation and shaping—to forge the extraordinary qualities of WC-Co cemented carbide.
The quality of the nano-scale or ultrafine powders used to produce ultrafine-grained WC-Co cemented carbide is critical to the alloy’s performance. Factors such as the uniformity of the distribution of components (WC, Co, carbon, and grain growth inhibitors) and potential contamination during ball milling and pressing significantly influence the properties of the sintered specimen. To achieve cemented carbides with high hardness, strength, and corrosion resistance, the addition of specific additives is a common and effective strategy. Extensive research indicates that adding transition metal carbides (such as VC, Cr3C2, TiC, and TaC) to tungsten carbide-cobalt (WC-Co) cemented carbides is an effective method for strengthening the binder phase and enhancing the alloy’s overall performance. Researchers have utilized refractory metal carbides—such as VC and TiC—as dopants to strengthen the Co binder phase while simultaneously refining the WC grain size.
2.2 The Value of Metallographic Analysis
Metallographic analysis serves as the “microscope” of materials science, enabling a deep exploration of a material’s microstructure, phase composition, and potential defects, thereby providing a valuable scientific basis for optimizing material properties. For WC-Co cemented carbides, metallographic analysis not only reveals details regarding grain fineness and distribution uniformity but also provides insight into critical factors such as porosity levels and the state of phase interfaces, laying a solid foundation for further performance enhancement.
III. The Artistic Journey of Metallographic Grinding and Polishing
3.1 A Well-Prepared Starting Point
Before embarking on the artistic journey of metallographic grinding and polishing, thorough preparation is essential. One must select an appropriate sample size and shape, ensuring the surface is flat and free of flaws. The equipment used in this experiment is the EcoMet 30 automatic grinder-polisher from Buehler. Given the high hardness of cemented carbide—which renders standard sandpaper ineffective for rapid grinding—a series of diamond grinding discs (ranging from 120 to 1200 grit) must be prepared. Additionally, necessary tools and materials include soft VerduTex and ChemoMet polishing cloths, high-performance 9-micron and 3-micron diamond suspensions, clean alcohol, a convenient air dryer, and an ultrasonic cleaner. These “precision tools” will facilitate the successful completion of each subsequent step.
3.2 Rough Grinding: The Rugged Beauty of Laying the Foundation
The process begins with preliminary grinding using a coarse diamond disc (e.g., 120 grit). Much like an artisan removing the rough outer layer of a stone, this step aims to eliminate large particulate impurities and surface irregularities. Subsequently, we gradually switch to finer diamond grinding discs (such as 400-grit and 800-grit)—much like an artisan meticulously carving jade—until the sample surface becomes relatively smooth. Throughout the grinding process, the disc must be kept moist to minimize heat buildup and debris accumulation, thereby ensuring the surface remains flat and smooth.
3.3 Fine Grinding: Pursuing Exquisite Smoothness
Once the sample surface achieves a certain level of smoothness, it enters the fine grinding stage. Here, a fine-grit disc (e.g., 1200-grit) is used to meticulously remove remaining microscopic scratches and irregularities. This stage demands extreme precision—akin to a painter sketching delicate lines on a canvas—as we strive to achieve a mirror-like finish.
3.4 Polishing: A Magnificent Transformation into Brilliance
The finely ground sample already possesses some luster, yet true perfection remains just out of reach. At this stage, the sample is placed on a VerduTex polishing cloth; diamond polishing suspension is applied, and the polishing machine is activated. Proper pressure and speed must be maintained during the process to prevent overheating or scratching the surface. Finally, the sample is transferred to a ChemoMet polishing cloth, where MasterPrep alumina polishing suspension is applied for the final polish. Driven by the rotation of the machine and the lubricating action of the suspension, the surface gradually reveals a dazzling brilliance, shimmering like a radiant gemstone in the sunlight. The result is a mirror-bright surface free from visible scratches or defects.
3.5 Cleaning and Drying: Meticulous Care to Preserve the Results
After polishing, the sample surface must be thoroughly cleaned with a solvent, such as alcohol, to remove residual polishing compounds and impurities. Once cleaned, the sample is dried using an air blower or gently wiped with a clean tissue. To further ensure surface cleanliness and prevent issues like rusting, the sample may also undergo deep cleaning in an ultrasonic cleaner. IV. Important Considerations
4.1 Selection of Tools and Materials
Selecting appropriate tools and materials is crucial during the grinding and polishing process. The choice of automatic grinding and polishing machine, diamond grinding discs, and polishing consumables must be based on a comprehensive assessment of factors such as the sample’s material, dimensions, and shape.
Using the EcoMet30 automatic grinding and polishing machine yields a mirror-like sample surface free from visible scratches or defects; subsequent etching reveals a clearly visible grain structure.
Incorporating a second phase to modify cemented carbide is a key method for developing and producing ultrafine-grained cemented carbide, with the specific type of second phase selected based on the intended application conditions. Carbides are the most widely used additives for this purpose; adding carbides not only facilitates significant grain refinement and inhibits the non-uniform growth of WC grains, but also—given the chemical similarity between these carbides and WC—enhances the alloy’s toughness and strengthens the grains.
